Using Assets

In this guide, we'll explore how to effectively use assets in your Flood project. We'll cover adding profile pictures for users and attaching assets to todos, demonstrating how to securely manage and display these assets in your application.

Before You Begin

This guide builds upon the concepts and implementations from previous guides, particularly the Data Security guide. If you haven't completed the previous guides, you can start with the repository that ended off at the last guide by cloning https://github.com/JLogical-Apps/flood-template/tree/data-security (opens in a new tab).

Asset Providers

The Asset Module in Flood uses AssetProviders to define how to retrieve and upload assets. An AssetProvider specifies the asset source (such as memory, device, or cloud), the path in that asset source, asset security, and caching policies.

Let's define AssetProviders for our todos and user profile pictures:

In example_core/lib/features/todo/todo.dart, add the following:
example_core/lib/features/todo/todo.dart
```
...

class TodoAssetProvider with IsAssetProviderWrapper {
  final AssetCoreComponent context;

  TodoAssetProvider(this.context);

  @override
  late final AssetProvider assetProvider = AssetProvider.static
      .adapting(context, (context) => 'todos/${context.entityId}/assets')
      .fromRepository<TodoEntity>(context);
}
```
Let's go through each part:
- .adapting(...): Chooses the appropriate storage (memory, device, or cloud) based on the current environment.
- 'todos/${context.entityId}/assets': Defines the storage path, organizing assets by todo ID.
- .fromRepository<TodoEntity>(context): Inherits security rules from the TodoEntity repository. This means that if a user has permission to read a TodoEntity, they'll also have permission to read its associated assets. Similarly, if a user can update a TodoEntity, they can also add or remove assets for that todo.

In example_core/lib/features/user/user.dart, add:

example_core/lib/features/user/user.dart

...

class UserProfilePictureAssetProvider with IsAssetProviderWrapper {
  final AssetCoreComponent context;

  UserProfilePictureAssetProvider(this.context);

  @override
  late final AssetProvider assetProvider = AssetProvider.static
      .adapting(context, (context) => 'users/${context.entityId}/profilePicture')
      .fromRepository<UserEntity>(context);
}

The key differences are:

The path is 'users/${context.entityId}/profilePicture', which stores the profile picture in a folder specific to each user.
It's linked to the UserEntity repository, inheriting its security rules.

To register these AssetProviders, update the FloodCoreComponent in example_core/lib/pond.dart:

example_core/lib/pond.dart

...
FloodCoreComponent(
  ...
  assetProviders: (context) => [
    UserProfilePictureAssetProvider(context),
    TodoAssetProvider(context),
  ],
)

Asset Security

Just like with repository security, the .fromRepository method only enforces security on the device. To protect your assets on the server-side, you need to generate and upload security rules to Firebase. Run the following command to generate asset security rules and deploy them automatically:

dart tool/automate.dart deploy production

This command will use the Ops Module to generate and deploy the appropriate security rules for your assets.

Initialization

To enable asset management in your Flood project, we need to make a few adjustments to our existing setup:

Flood uses the image_picker (opens in a new tab) package to allow users to upload and take photos for asset fields. Follow the installation process for the platforms you're planning to support (Android and iOS).
We need to add Firebase Storage as the implementation for cloud asset providers. First, let's modify the getCorePondContext function in example_core/lib/pond.dart to include the assetProviderImplementations parameter:
example_core/lib/pond.dart
```
Future<CorePondContext> getCorePondContext({
  ...
  List<AssetProviderImplementation> Function(CorePondContext context)? assetProviderImplementations,
  ...
}) async {
  ...
}
```

Now, update the FloodCoreComponent initialization in the same file to include the assetProviderImplementations:

example_core/lib/pond.dart

...
final corePondContext = CorePondContext();
await corePondContext.register(FloodCoreComponent(
  ...
  assetProviderImplementations: assetProviderImplementations,
));
...

Finally, in example/lib/main.dart, pass the Firebase Storage AssetProvider Implementation in getCorePondContext:

example/lib/main.dart

...
final corePondContext = await getCorePondContext(
 ...
 assetProviderImplementations: (context) => [
   FirebaseStorageAssetProviderImplementation(),
 ],
);
...

These modifications ensure that your Flood project is properly set up to handle assets, including the ability to use Firebase Storage for cloud asset management when in the production environment.

Adding Assets to ValueObjects

Now that we've set up our AssetProviders, let's add asset fields to our User and Todo ValueObjects.

Update the User class in example_core/lib/features/user/user.dart:

example_core/lib/features/user/user.dart

...
class User extends ValueObject {
  ...

  static const profilePictureField = 'profilePicture';
  late final profilePictureProperty = field<String>(name: profilePictureField)
      .asset(
        assetProvider: (context) => context.locate<UserProfilePictureAssetProvider>(),
        allowedFileTypes: AllowedFileTypes.image,
      )
      .withDisplayName('Profile Picture');

  @override
  late final List<ValueObjectBehavior> behaviors = [
    ...
    profilePictureProperty,
  ];
}

Update the Todo class in example_core/lib/features/todo/todo.dart:

example_core/lib/features/todo/todo.dart

...
class Todo extends ValueObject {
  ...

  static const assetsField = 'assets';
  late final assetsProperty = field<String>(name: assetsField)
      .asset(assetProvider: (context) => context.locate<TodoAssetProvider>())
      .list()
      .withDisplayName('Assets');

  @override
  late final List<ValueObjectBehavior> behaviors = [
    ...
    assetsProperty,
  ];
}

These new fields allow users to attach a profile picture to their account and multiple assets to each todo. The profilePictureProperty is restricted to images, while assetsProperty allows any file type.

Understanding and Validating Asset Functionality

Now that we've added asset fields to our User and Todo ValueObjects, let's explore what this enables and how to verify it's working correctly.

Automatic Asset Management in Ports

By adding these asset fields, we've enabled automatic asset management in the corresponding Ports. This means:

For User entities:

When editing a User through a Port, there will be a field for the profile picture.
Users can upload a new profile picture or delete the existing one directly from this field.

For Todo entities:

When creating or editing a Todo through a Port, there will be a field for assets.
Users can add multiple assets to a todo, delete existing assets, or replace them with new ones.

This integration is automatic - you don't need to write any additional code to handle asset uploads or deletions when editing these entities. The Port Module generates the appropriate UI for asset management, and asset changes are automatically handled and persisted when the Port is submitted.

Validating Asset Upload Functionality

Let's verify that this new functionality is working correctly:

Restart your app to ensure all changes are applied.
Navigate to the home page and create a new todo by clicking the "Create Todo" button.
In the todo creation dialog, you should now see a new "Assets" field. This field allows you to add multiple assets to your todo.
Click on the "+ Add" button in the Assets field. This should open the asset picker.
Select an image or take a photo to add as an asset to your todo.
Complete the todo creation process by filling in the other fields and saving the todo.
Although you won't see the assets in the todo cards on the home page yet (we'll implement that display later), you can verify that the assets were successfully saved by editing the todo you just created.
When you open the edit dialog for the todo, you should see the assets you previously added in the Assets field.

This process confirms that:

The new Assets field is correctly added to the Todo Port.
Assets can be successfully uploaded and associated with a todo.
The uploaded assets persist even after restarting the app (if in an environment other than testing)
You can manage (add, delete, replace) assets directly through the Port interface.

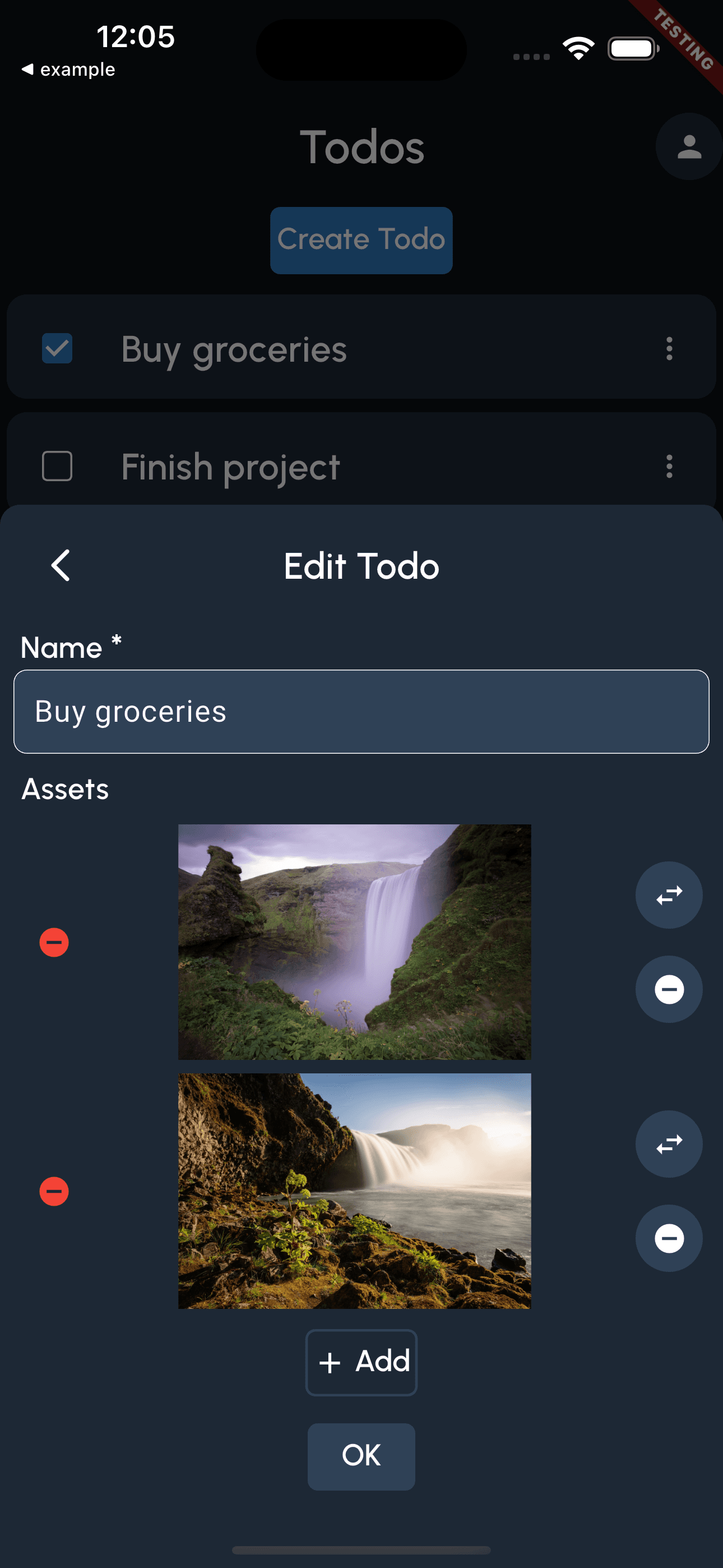

Upload Assets to a Todo

Displaying Assets

Now that we can add assets to todos, let's display them on the home page. We'll update our HomePage to show the assets associated with each todo, and we'll explore how to customize their appearance.

example/lib/presentation/pages/home_page.dart

...
.map((todoEntity) => StyledCard(
  titleText: todoEntity.value.nameProperty.value,
  ...
  children: [
    if (todoEntity.value.assetsProperty.value.isNotEmpty)
      StyledList.row.withScrollbar(
        children: todoEntity.value.assetsProperty.value
            .map((asset) => StyledAssetProperty(assetProperty: asset, height: 80))
            .toList(),
      ),
  ],
))
...

This code adds a horizontal scrollable list of assets below each todo item if it has any attached assets. The StyledAssetProperty widget is used to display each asset.

Note that StyledAssetProperty offers additional customization options:

You can specify a width in addition to height to control the size of the asset display.
The fit property allows you to control how the asset is scaled within its display area. This property accepts a BoxFit enum, which provides various scaling options. For more details on BoxFit, refer to the Flutter documentation (opens in a new tab).

These options allow you to fine-tune the appearance of assets in your UI to best suit your app's design.

Remember, StyledAssetProperty automatically handles different types of assets, including images and videos.

User Profile Picture

Let's add the ability for users to set and view their profile picture. We'll replace the menu button on the top-right of the home page with a profile icon that displays the user's picture and provides options to manage it.

Update the HomePage class in example/lib/presentation/pages/home_page.dart:

example/lib/presentation/pages/home_page.dart

...
class HomePage with IsAppPageWrapper<HomeRoute> {
  ...

  @override
  Widget onBuild(BuildContext context, HomeRoute route) {
    final loggedInUserId = useLoggedInUserIdOrNull();
    final userModel = useEntityOrNull<UserEntity>(loggedInUserId);
    final todosModel = useQuery(getTodosQuery(loggedInUserId, route.onlyCompletedProperty.value));

    return StyledPage(
      titleText: 'Home',
      actionWidgets: [
        ModelBuilder(
          model: userModel,
          builder: (UserEntity? userEntity) {
            return StyledContainer(
              width: 40,
              height: 40,
              shape: CircleBorder(),
              child: userEntity?.value.profilePictureProperty.value != null
                  ? StyledAssetProperty(
                      assetProperty: userEntity!.value.profilePictureProperty.value!,
                      fit: BoxFit.cover,
                    )
                  : StyledIcon(Icons.person),
              onPressed: () async {
                await context.showStyledDialog(StyledDialog.actionList(
                  context: context,
                  actions: [
                    ActionItem(
                      titleText: 'Upload Profile Picture',
                      descriptionText: 'Upload a profile picture to your account.',
                      color: Colors.blue,
                      iconData: Icons.image,
                      onPerform: (_) async {
                        final asset = await AssetPicker.select(context, AllowedFileTypes.image);
                        if (asset != null) {
                          await userEntity!.value.profilePictureProperty.uploadAsset(context.assetCoreComponent, asset);
                        }
                      },
                    ),
                    if (userEntity?.value.profilePictureProperty.value != null)
                      ActionItem(
                        titleText: 'Remove Profile Picture',
                        descriptionText: 'Remove your profile picture.',
                        color: Colors.red,
                        iconData: Icons.image_not_supported,
                        onPerform: (_) async {
                          await userEntity!.value.profilePictureProperty.deleteAsset(context.assetCoreComponent);
                        },
                      ),
                    ActionItem(
                      titleText: 'Log Out',
                      descriptionText: 'Log out of your account',
                      iconData: Icons.logout,
                      color: Colors.red,
                      onPerform: (context) async {
                        await context.authCoreComponent.logout();
                        context.warpTo(LoginRoute());
                      },
                    ),
                  ],
                ));
              },
            );
          },
        )
      ],
      body: ...
    );
  }

  ...
}

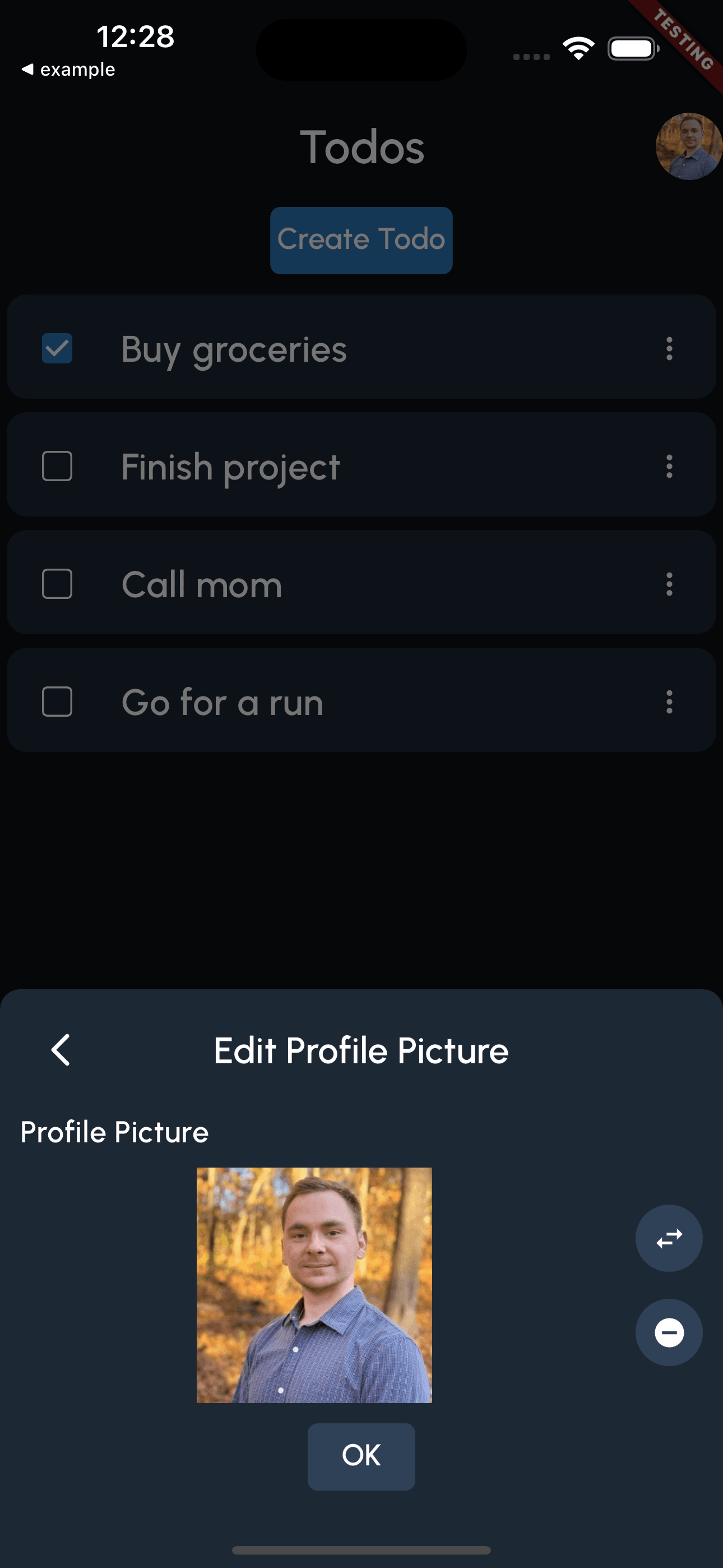

This implementation demonstrates manual asset upload and deletion:

Upload Profile Picture:

Uses AssetPicker.select() to allow the user to choose an image.
Calls uploadAsset() on the profilePictureProperty to upload the selected asset.

Remove Profile Picture:

Only shown if a profile picture exists.
Calls deleteAsset() on the profilePictureProperty to remove the current profile picture.

These methods provide direct control over asset management, allowing you to handle specific scenarios or add custom logic around asset uploads and deletions.

Note: An alternative approach using Ports could look like this:

ActionItem(
  titleText: 'Edit Profile Picture',
  descriptionText: 'Edit your profile picture.',
  color: Colors.orange,
  iconData: Icons.face,
  onPerform: (_) async {
    await context.showStyledDialog(StyledPortDialog(
      titleText: 'Edit Profile Picture',
      port: userEntity!.value.asPort(context.corePondContext, only: [User.profilePictureField]),
      onAccept: (User user) async {
        await context.dropCoreComponent.updateEntity(userEntity..set(user));
      },
    ));
  },
),

This Port-based approach automatically generates a UI for managing the profile picture, including upload and delete functionality. It's more concise and leverages Flood's built-in Port system, but may offer less granular control over the upload/delete process compared to the manual approach.

Both methods are valid, and the choice between them depends on your specific requirements and desired level of control over the asset management process.

Asset Lifecycle

The Asset Module in Flood automatically manages the lifecycle of assets:

When an asset is uploaded to a ValueObject, it's stored in the AssetProvider, and the asset's ID is assigned to the asset field of the ValueObject.
If an asset is replaced, the new asset is uploaded, the old asset is deleted, and the new asset's ID is used in the field.
When an entity with asset fields is deleted, all associated assets are automatically deleted as well.

This automatic management ensures that your asset storage remains clean and efficient.

Next Steps

Congratulations! You've successfully implemented asset management in your Flood application. Users can now add profile pictures and attach assets to their todos.

For additional practice, you could enhance the TodoDetailsPage to display a list of assets associated with each todo.

Now that we've added and secured assets in our todo app, the next step is to learn how to automate the release process for our app. Continue to the Releasing Your App guide to learn how to automatically release your app to the Play Store, TestFlight, and the web.
